The choice between the KEYDIY KD-X6 and KD-X4 largely depends on the vehicle models you need to work with and the functions you expect from your key programmer. The comparison below highlights the key differences to help you decide which tool better suits your needs.

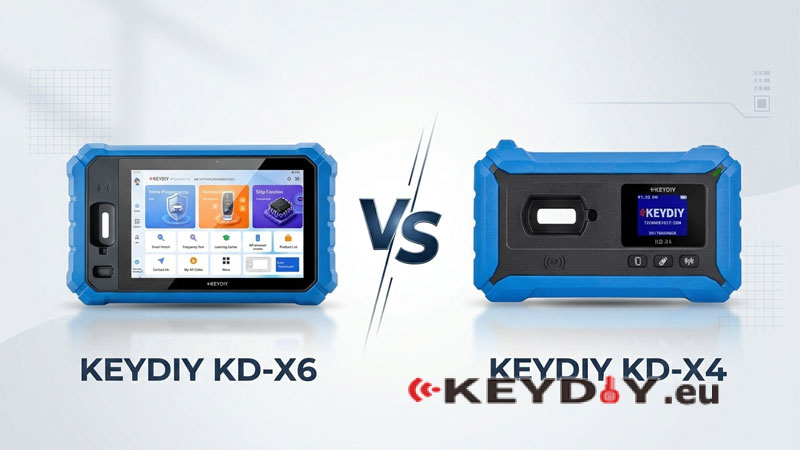

KEYDIY KD-X6 vs KD-X4: Key Differences
| Feature | KD-X6 | KD-X4 |
| Image |  |
 |
| Standalone Operation | Yes | No |
| Mercedes-Benz FBS3 | Add Key & All Keys Lost | Not supported |
| Audi/Porsche MLB | Built in | KD-MP required |
| VW/Audi/Skoda MQB48 | Built in | KD-MP required |
| VW/Audi 5C/5D | ✓ | ✓ |
| BMW CAS/FEM/BDC | Supported | KD-EPA Adapter required |
| DoIP | Built in | KD-DOIP Adapter required |
| Motorcycle Key Programming | Supported | KD-MOTO Adapter required |
| Car Key Programming | ✓ | ✓ |
| Toyota / Ford / Land Rover / Nissan / Volvo / Hyundai / Kia Key Programming | ✓ | ✓ |
| Remote Generation | ✓ | ✓ |
| Chip Identification & Cloning | ✓ | ✓ |
| Cloud Diagnosis / C-Client | ✓ | Not supported |
What the Difference Means for Your Purchase
You do not need to compare every row individually. The buying decision mainly comes down to these points:
- Need Mercedes-Benz FBS3?Choose KD-X6.
- Need Audi/Porsche MLB or MQB48 without KD-MP?Choose KD-X6.
- Need built-in DoIP?Choose KD-X6.
- Already have or do not mind using adapters?KD-X4 may be sufficient.
- Mainly need shared functions such as car-key programming, remote generation and chip cloning?Both cover them.
- Need motorcycle key programming?Both support it, but the required accessories differ.
- Want Cloud Diagnosis / C-Client?Choose KD-X6.
The practical distinction is simple: KD-X6 puts more functions into the main device, while KD-X4 uses additional adapters for some applications.

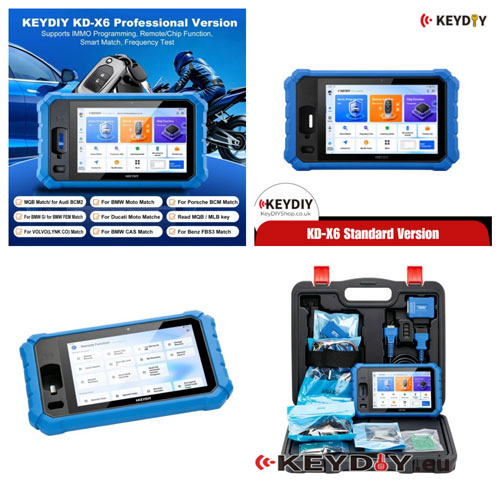

KD-X6 Standard vs Full Version
If you decide on KD-X6, there are two package levels to consider.
| KD-X6 Standard | KD-X6 Full | |
| Listed match/read licenses | Purchased separately | Included |
| KD-MOTO adapter | Not included | Included |
| DB25-FBS3 adapter | Not included | Included |
Standard Version
- Lower package configuration.
- Selected match/read functions require separate licenses.
- KD-MOTO and DB25-FBS3 are purchased separately.
Professional/Full Version
- Listed match/read licenses are included.
- KD-MOTO adapter is included.
- DB25-FBS3 adapter is included.
If you already know which functions you need, compare the included licenses and accessories before choosing between the two packages.
KD-X6 or KD-X4?
Choose KD-X4 if:
- Your current jobs are covered by its supported functions.
- You mainly need common car-key programming functions.
- You already have, or do not mind adding, the required adapters.
- You do not need Mercedes-Benz FBS3, built-in MLB/MQB48 or built-in DoIP.
Choose KD-X6 if:
- Mercedes-Benz FBS3 is part of your work.
- You need built-in Audi/Porsche MLB or MQB48 functions.
- You want built-in DoIP.
- You prefer a standalone setup.
- Cloud Diagnosis / C-Client is important to you.
Bottom line: The right choice depends on the functions and vehicle systems you actually work with. If the Keydiy KD-X4 already meets your daily needs, upgrading just for extra features may not be necessary. However, if you need the additional capabilities built into the KD-X6, those added functions can make the upgrade worthwhile.
