KEYDIY Clamp Adapters, including the BDC02 and BDC03 Solder-Free Adapters, are designed to work seamlessly with the Keydiy KD-X4, KD-MAX, and other compatible KEYDIY devices. They enable solder-free key programming for BMW BDC2, BDC3, and BCP systems, as well as VAG MQB49 5C/5D vehicles, making key addition faster, safer, and more convenient for professional locksmiths.
KEYDIY Clamp Adapters Detailed Breakdown

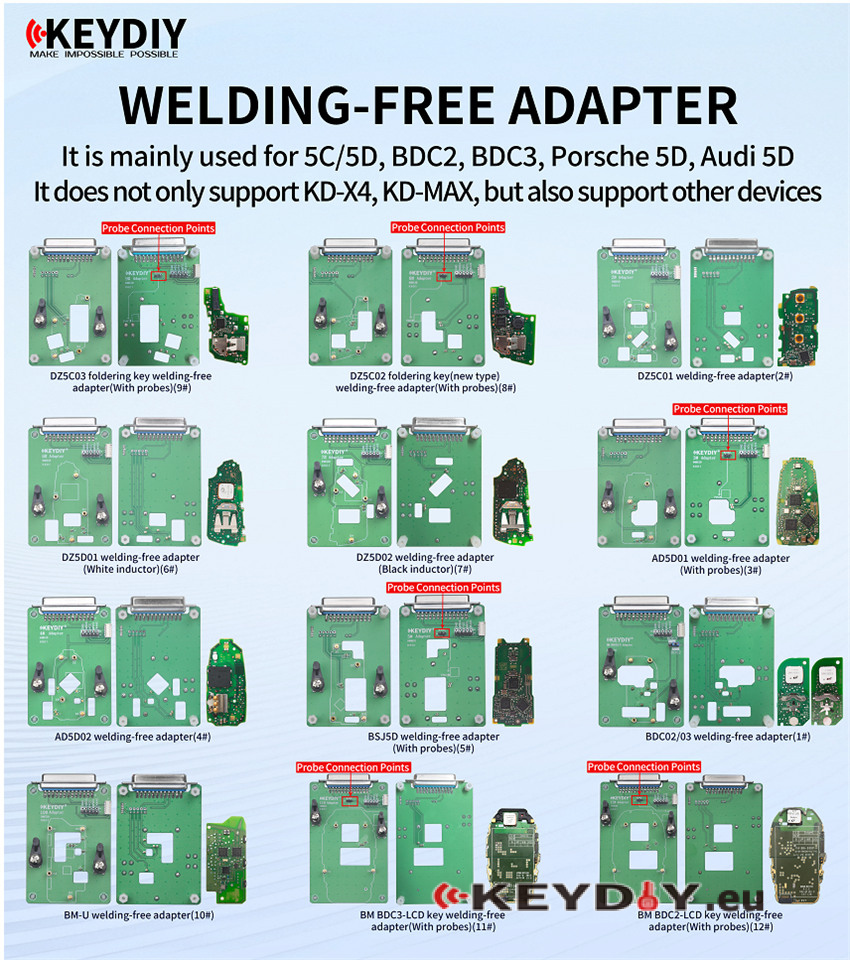

| Item No. | Adapter Model Name | Key Features |
| 1# | BDC02/03 welding-free adapter | Designed for BMW BDC2 and BDC3 immobilizer module work. |
| 2# | DZ5C01 welding-free adapter | Standard solderless board configuration for compatible systems. |
| 3# | AD5D01 welding-free adapter | Comes With probes; features a designated Probe Connection Point. |
| 4# | AD5D02 welding-free adapter | Custom solderless layout for targeted immobilizer data extraction. |
| 5# | BSJ5D welding-free adapter | Equipped With probes and an integrated Probe Connection Point. |
| 6# | DZ5D01 welding-free adapter | Specifically designated for boards with a White inductor. |
| 7# | DZ5D02 welding-free adapter | Specifically designated for boards with a Black inductor. |
| 8# | DZ5C02 foldering key (new type) welding-free adapter | Updated design variant that comes With probes and connection points. |
| 9# | DZ5C03 foldering key welding-free adapter | Standard foldering key setup; comes With probes and connection points. |
| 10# | BM-U welding-free adapter | Universal style architecture adapter block. |
| 11# | BM BDC3-LCD key welding-free adapter | Specialized for modern BMW BDC3 LCD smart keys; features probes. |
| 12# | BM BDC2-LCD key welding-free adapter | Specialized for modern BMW BDC2 LCD smart keys; features probes. |
Follow these step-by-step instructions:

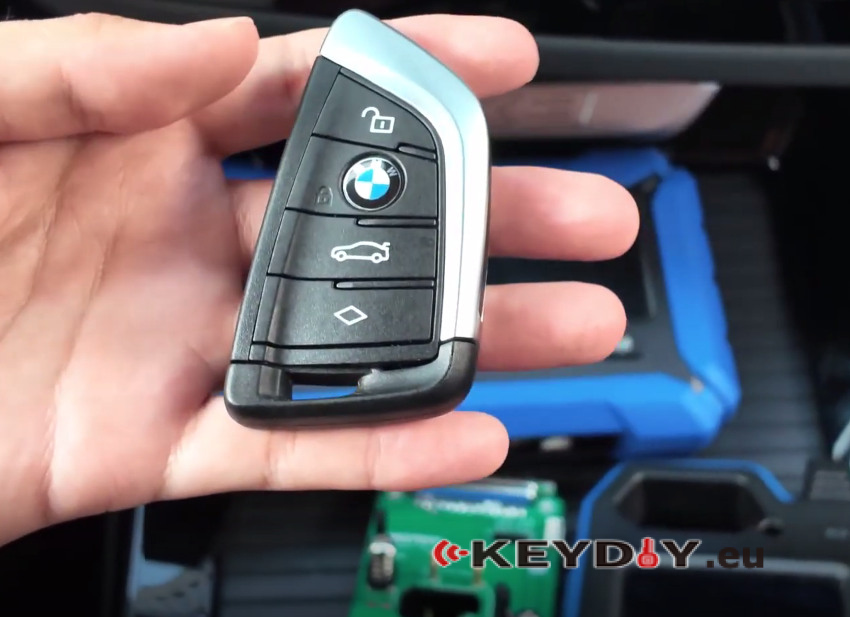

1.Disassemble the Original Key

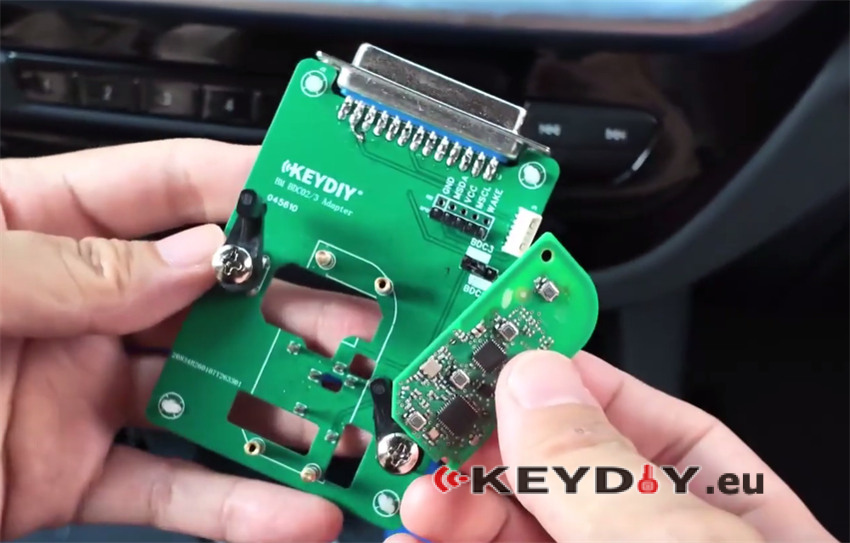

Carefully pry open the back cover of your original car key. Remove the internal PCB circuit board completely.
2.Connect the Adapter to the PCB

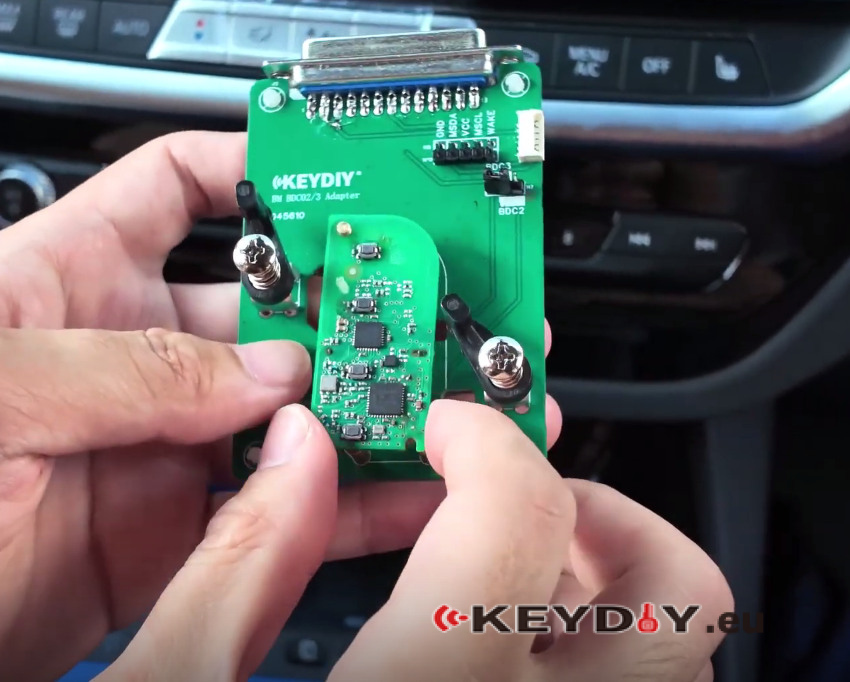

Place the circuit board onto the adapter card.

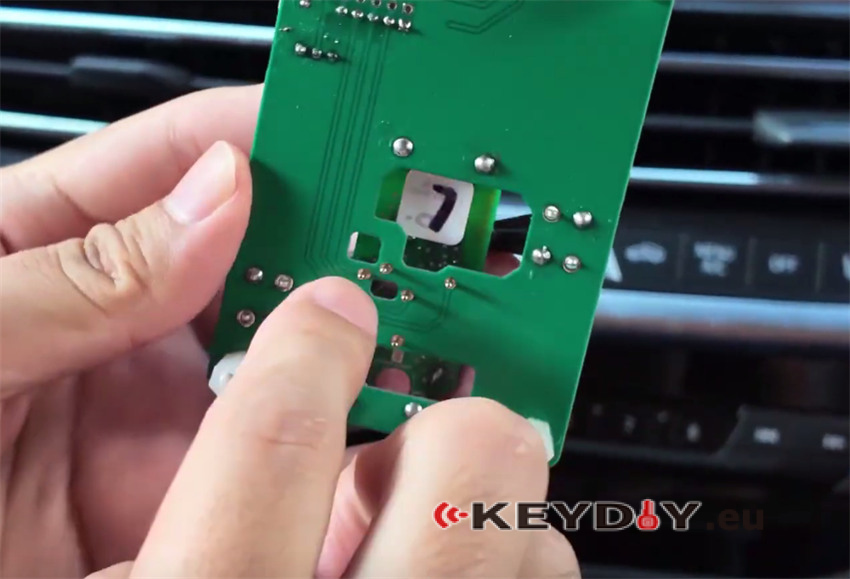

Ensure the board is sitting perfectly flat and seated correctly.

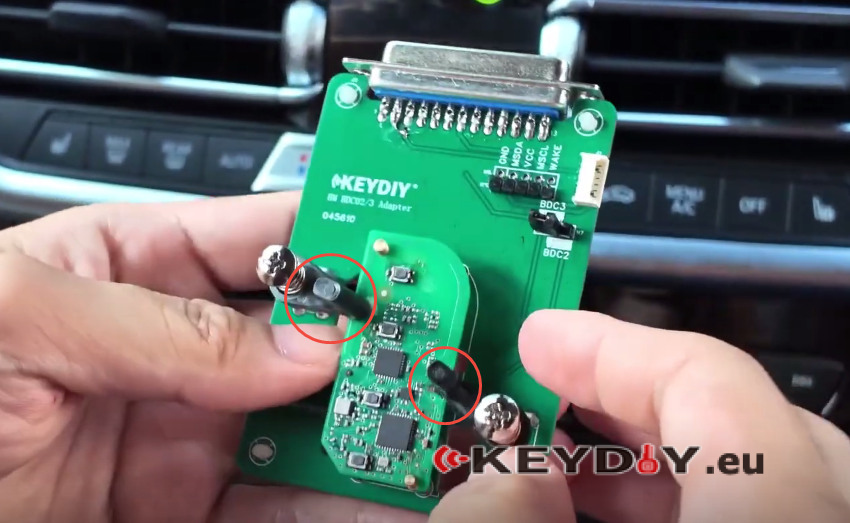

Slide both sides of the adapter inward to lock the circuit board in place.
Double-check that every single pin aligns perfectly one-to-one.
Tip: If the pins are misaligned, the tool won’t be able to read the data properly.
3.Check the Adapter Ports

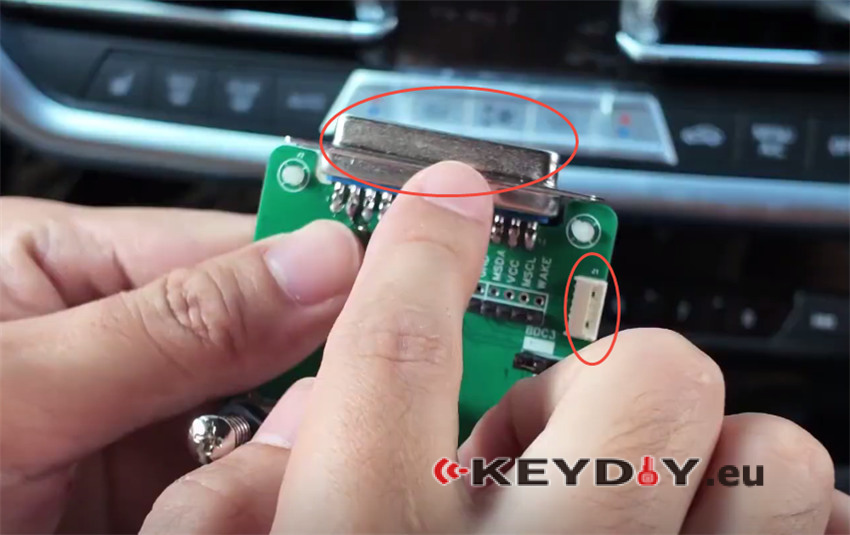

The clamp adapter is designed with two connection interfaces.
4.Link the Adapter to your Programmer

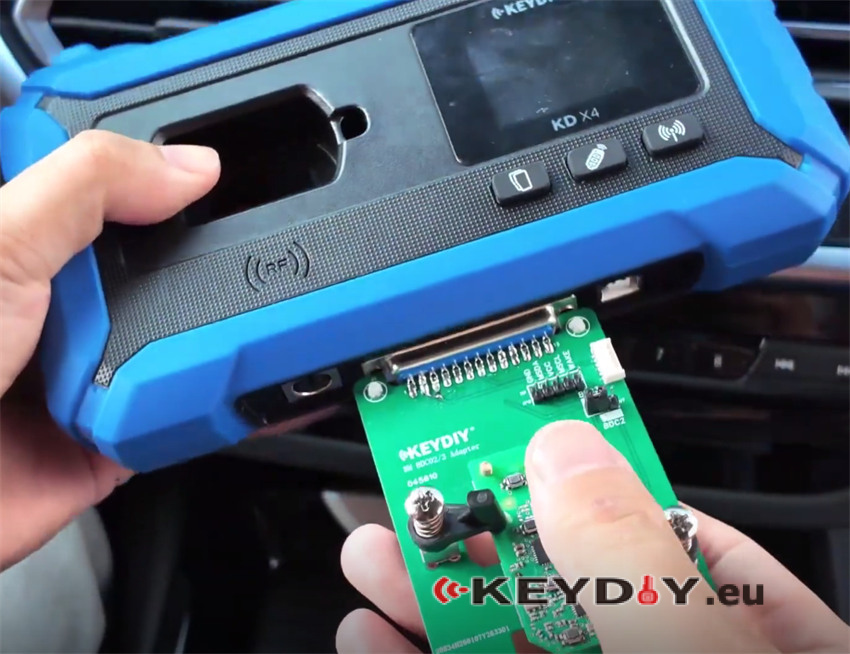

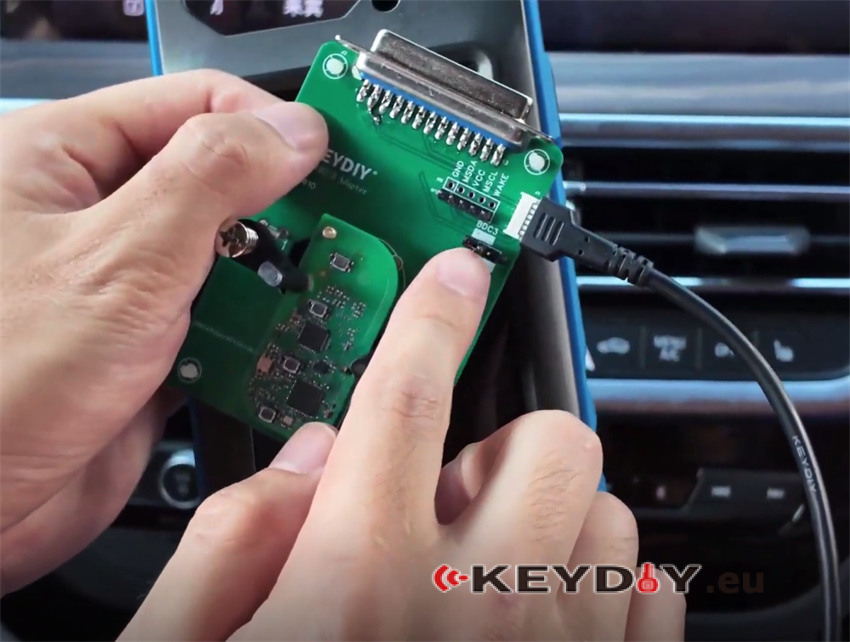

Plug the other end of your KD Clamp Adapter into your KEYDIY device, such as Keydiy KD-X4 5-in-1 key programmer or KD-Max Remote Maker. You may need to use a specific connecting wire harness depending on your device.
5. Read and Clone Data
Power on your KEYDIY device and connect it to your mobile app via Bluetooth. Navigate to the IMMO programming or Smart Key Clone section (e.g., BMW G/U Chassis BDC3) and follow the on-screen prompts to read the chip data and generate your new remote.
6. Finalize the New Remote
Once the data is successfully read, place the new key’s PCB (such as the KD FGB Series Key) into the KEYDIY induction coil area to complete the key generation.
